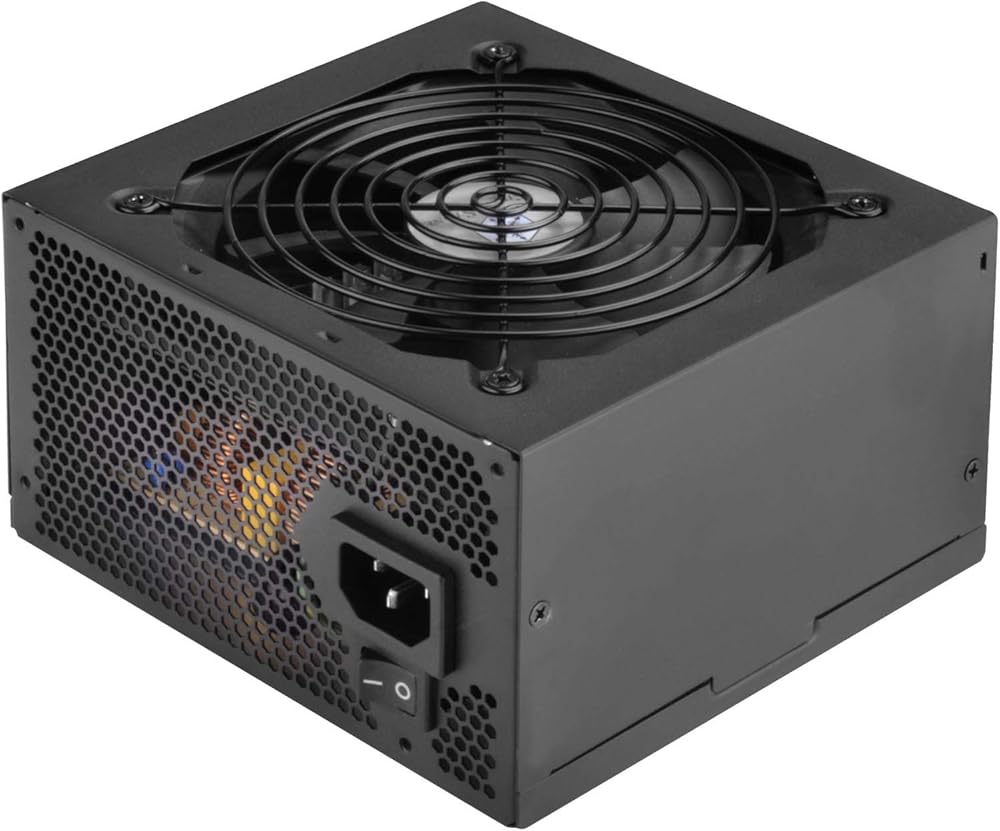

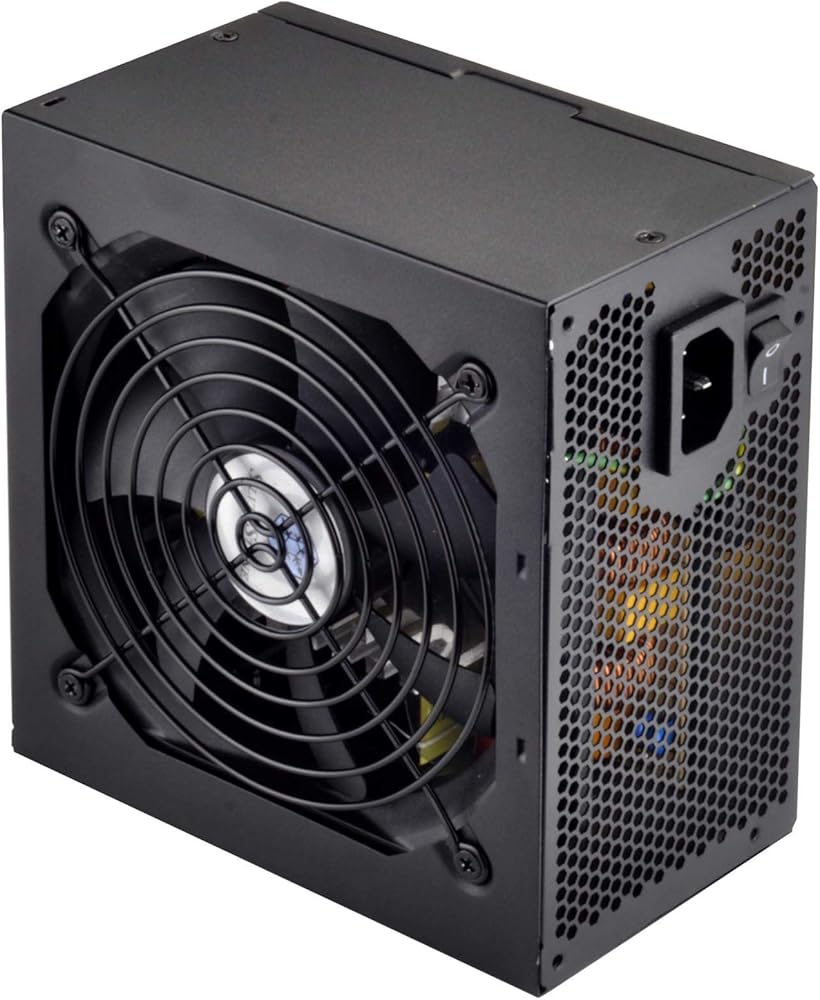

Silverstone Tek 80 Plus Bronze Certified Active PFC Power Supply ATX12V 500W Power Supply - View 1

Silverstone Tek 80 Plus Bronze Certified Active PFC Power Supply ATX12V 500W Power Supply

4.3 (56 ratings)
N/A
View on Amazon

Key Features

  • High efficiency with 80 PLUS Bronze certification
  • 24/7 continuous power output with 40℃ operating temperature
  • Class-leading single +12V rail
  • Multiple protection circuitry
  • Silent running 120mm fan with 18dBA
  • PCI-E connectors support
  • Active PFC

Specifications

Global Trade Identification Number
00844761011703
Manufacturer
Silverstone Tek
UPC
844761011703
Model Name
PS-ST50F-ESB
Brand Name
SilverStone Technology
Number of Fans
1
Fan Size
120 Millimeters
Wattage
400 watts
Cooling Method
Air
Power Supply Design
Modular
Compatible Devices
Personal Computer
Connector Type Used on Cable
PCI Express
Output Wattage
500 Watts
Form Factor
ATX12V
Item Dimensions
10 x 7 x 4 inches

* The PC Builder is a participant of the Amazon Associates Program, through which we earn advertising commission on qualified sales by linking to the Amazon products.

Customer Reviews

Franklin72
Pros:Solid, heavy caseConnectors aren't cheap, flimsy crap.Not DOA. (Seriously, though, read some reviews of other PSUs and it will seem like half of them come DOA)Quiet.No real cons.. (read other thoughts)Other Thoughts:It doesn't feel like the fan blows that hard, but that may be a result of the honeycomb rear panel, which would spread out the air flow over a greater area.The only wires that are wrapped are the ones that go to the main MOBO connector (others are zip tied)I was pleasantly surprised by the total of four 6-pin PCI express connectors (with one being a 6+2)Good, solid PSU for the price.
Paul E. King
In a plantation house in Nashville there's a room where you can hear a clock ticking 45 steps away. My employer had me build a computer for him. I did not know that the thing was going into a room as silent as a tomb. After installing you could hear that computer from rooms away. it wasn't that it was that much louder than an average office computer, it was that it was in the quietest place I think I have been in my life.Swapped the PS out with this, and although you can hear the fan in the room, it did what I needed it to do.Man does it have a lot of connectors on it though... phew,,,
DG
With quality components and enough power for a basic system at a decent price, this PSU was a decent choice for me. However, 500 watts is too low for many gaming or high-end systems. Before buying, take a look at the rest of the components you plan to use. If you plan to run multiple graphics cards in an SLI or Crossfire configuration, this unit will almost certainly be inadequate in terms of both power requirements and connectors.Also worth noting: this is a non-modular power supply, meaning that you can only use the attached cables and connectors. There's a good chance that you will end up cramming the excess cables and connectors behind the side panel of your case.And remember to do as much research as you can before buying a power supply, and never buy the cheapest thing you can find. A poorly-made power supply can damage or destroy your PC's other components, or even burst into flames. Silverstone's units generally don't do this, but you cannot go off of the brand alone, regardless of the quality of their other products.
Davey
At first I was a bit skeptical not knowing the quality of this particular brand but it did have the dimensions and electrical specs I required.Long story short I was very pleased with the quality and overall construction of the unit. I digitally checked all the outputs and they were within tolerance.I purchased the 500W version from this manufacturer and the DB level is very low, hardly heard. Very little heat is generated so the efficiency is also good. I have so far built two units with these units and am pleased with both.
